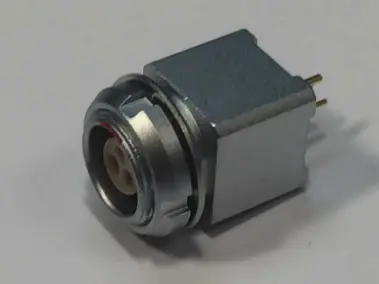

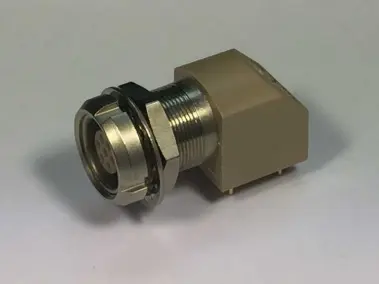

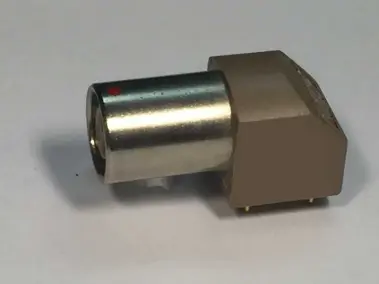

B Series PC Mount Receptacles

B Series PC Mount Receptacles
Alpine Electronics’ LEMO® push-pull connector B Series receptacles offer a secure, push-pull latching system with high-density panel spacing, 360-degree EMI shielding and quick mating or unmating capabilities.

LEMO® Connector B Series Mount Receptacle Features

LEMO’s® B Series PC mount receptacle push-pull connectors offer a variety of unique features that make it the easiest to use receptacle in the industry.  Some unique features of mount receptacles, include:
  • Multipole types, 2 to 64 contacts
  • 360° screening for full EMC shielding
  • Push-pull self-latching system
  • High packing density

LEMO® B Series PC Mount Receptacle Applications

Alpine Electronics’ LEMO® B Series receptacles are regularly used in some of the world’s most vibrant and exciting industries, these include:

Contact Alpine Electronics Today

Contact us for more information on our LEMO® connector B Series PC mount receptacles, or request a quote today.


The World Famous LEMO self-latching system consists of Swiss engineered and precision machined components. Here is how it works.

LEMO self-latching system

LEMO Cable Mount Plug


The cable mount plug is mated to the receptacle by simply pushing the plug axially into the receptacle housing.  Alignment is accomplished by various keying options.





Once mated the connection cannot be broken by pulling on the cable or any other part of the system beside the outer release sleeve.





A single axial pull of the outer release sleeve results in the latch sleeve retracting and disengagement between plug and receptacle is accomplished.  No twisting or threading allows for closer spacing on a panel because finger clearance is reduced to 180 degrees.




LEMO Part Section Showing Internal Components
