Fixed Socket LEMO® Connectors – EE

EE - Fixed Socket

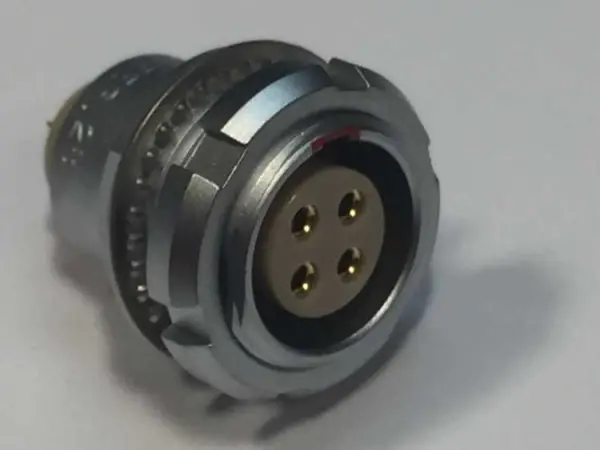

Fixed Socket LEMO® Receptacles and Connectors feature a keying system which allows for higher contact densities (from 2 – 64 positions) and prevents unwanted cross mating of otherwise similar connectors. LEMO® EE fixed sockets are one part of the overall LEMO® B Series fixed receptacle. LEMO® EE fixed socket connectors are available in various sizes and styles.

The EE fixed socket is similar to the EC style, also particularly suited for rear mounting to the panel.  With a fixed rear flange and a single adjustable front nut, the EE fixed socket can be adapted for many different panel thicknesses.

Fixed Socket LEMO® Connector Features

Fixed socket LEMO® receptacles provide a wide range of features including:
  • Security of the Push-Pull self-latching system IP50
  • Multiple key options to avoid cross mating of similar connectors
  • Full 360-degree EMC shielding
  • Solder, Crimp or Print Contacts
  • High packing density for space savings
  • Multipole types 2 to 64 Contacts

Fixed Socket LEMO® Receptacle Environmental Parameters

LEMO® EE fixed socket push-pull connectors should be selected based on the environmental limitations that will affect your device. When choosing what type of LEMO® circular connectors you may need the conditions that could influence your decision making, include:
  • Indoor or Outdoor Application Site
  • Temperature Range
  • Ingress Protection
  • Dry or Wet Conditions
The world-renowned LEMO® push-pull latching system allows for quick connect/disconnect while maintaining a full 3600 EMC shielding and the highest security against shock, vibration or pulling on the cable. LEMO® B Series receptacles have long been the choice of savvy equipment designers with mission-critical connections.

LEMO® EE Fixed Socket Circular Connector Applications

LEMO’s® B Series EE fixed sockets are used within a wide range of industries, some of which include:
Please note that availability is dependent upon time of order. If quantity for the product you desire is not available, please call for an alternate LEMO Part number.


LEMO® Connector Self-Latching System

The World Famous LEMO® self-latching system consists of Swiss engineered and precision machined components. Here is how it works:
  • The cable mount plug is mated to the receptacle by simply pushing the plug axially into the receptacle housing.
  • Alignment is accomplished by various keying options.
  • Once mated the connection cannot be broken by pulling on the cable or any other part of the system besides the outer release sleeve.
  • A single axial pull of the outer release sleeve results in the latch sleeve retracting and disengagement between plug and receptacle is accomplished.
  • No twisting or threading allows for closer spacing on a panel because finger clearance is reduced to 180 degrees.

Contact Alpine Electronics Today

Contact us for more information regarding LEMO® EE fixed socket circular connectors, or request a quote today.
