FG - Plug

  • FG - Plug

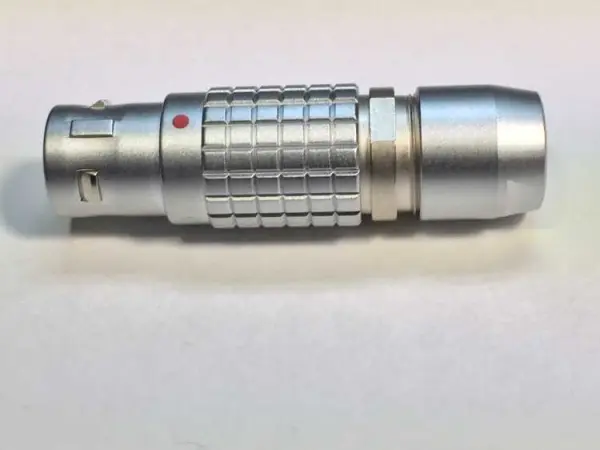

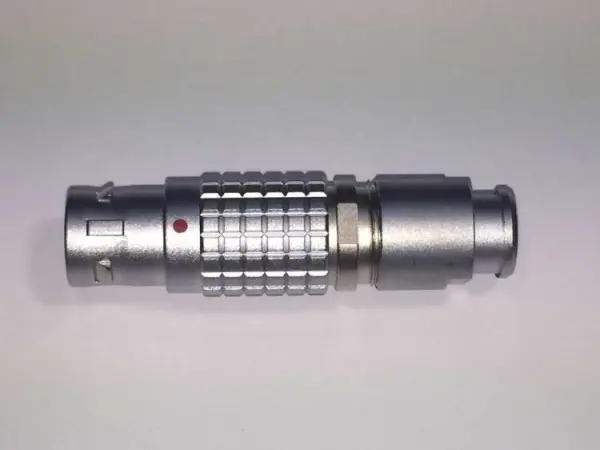

The FG is the work horse of the B series cable mount plugs, and typically the most readily available plug style.  Think of it as the “base model” or the launching point from which the other plug styles are derived.  The characteristic feature of the LEMO B series is the keying system, so it’s important to understand and properly specify the proper key for your application.  The 3rd position of the part number defines the keying position, for example, FGG is the standard single key version.  Many other keyed versions are available per the diagram below our products.

Features
  • Security of the Push-Pull self-latching system IP50
  • Multiple key options to avoid cross mating of similar connectors
  • 360 degree shielding for full EMC shielding
  • Solder or Crimp Contacts
  • High packing density for space savings
  • Multipole types 2 to 5 Contacts
LEMO B Series Plug Diagram
It is worth noting that the standard G key is the only single key version.  All other so called alternate keyed versions will have two or more keys at varying angles.  In this way the end user can position multiple receptacles on a panel and ensure no cross mating will occur by use of multiple key configurations to polarize the layout.  This chart may seem a little daunting at first, so please don’t hesitate to call the LEMO experts at Alpine Electronics if you have questions.
