A REDEL® connector is a premium quality connection device that utilizes a push-pull latching system to connect to another cable or piece of equipment. Once the plastic electrical connectors are latched, the connection cannot be broken due to pulling or tugging of the cable. REDEL® circular connectors are extremely reliable, the only way they can be disengaged is by pulling on its outer release sleeve. Additionally, REDEL’s® push-pull connector devices are lightweight and color coded, which provides an instant visual identification as to whether the connectors are compatible or not.

Many people don't realize that LEMO® has a plastic electrical connector line marketed under the REDEL® name. These high-quality plastic versions of LEMO's® B series design have the same reliable push-pull connector contact system and many of the same insert configurations as LEMO's® metal shell connectors. To review an online catalog, click on the link to the LEMO® site below.

Get Adobe Reader
REDEL® Catalog
SP® SERIES

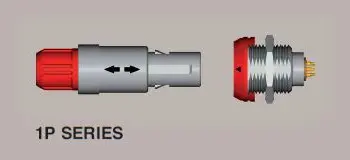

REDEL® 1P Series Plastic Electrical Connectors

The 1P Series is a well proven small sized circular connector that can accommodate cable diameters up to 6.5 mm, and allow up to 14 solder contacts. In addition, the plastic electrical connector contacts of the 1P Series are gold-plated over copper and nickel to ensure at least 1,000 mating / unmating cycles, while maintaining less than 10 mOhm contact resistance.

REDEL® 1P Series Characteristics & Benefits

REDEL’s® 1P Series circular connectors have many beneficial qualities, some of which include:
  • Indoor/splash proof environment, 6 keyways
  • Lightweight
  • PSU or PEI plastic shell
  • Extensive sterilization (over 100 cycles)
  • Excellent electrical safety (touch & scoop proof)
  • Available in various colors (gray, blue, yellow, black, red, green & white)
  • Large choice of keying to avoid cross mating
  • Aesthetically pleasing design
  • Disposable models available (except 3P series)
  • Various contact types: solder, crimp, print and elbow print 90°

REDEL® 2P Series Plastic Electrical Connectors

The REDEL® 2P Series push-pull connector measures 18 mm and can accommodate cable diameters up to 9.2 mm.  These plastic electrical connectors also have the capacity to allow for up to 34 solder or crimp contacts. The 2P Series features a top quality lightweight design and is constructed from rugged materials that will optimize most applications.

REDEL® 2P Series Characteristics & Benefits

REDEL’s® 2P Series push-pull connectors provide a bevy of beneficial characteristics and features, including:
  • Indoor/outdoor environments, 3 keyways
  • Lightweight
  • PSU or PEI plastic shell
  • Extensive sterilization (over 100 cycles)
  • Excellent electrical safety (touch & scoop proof)
  • Available in various colors (gray, blue, yellow, black, red, green & white)
  • Large choice of keying to avoid cross mating
  • Aesthetically pleasing design
  • Disposable models available (except 3P series)
  • Various contact types: solder, crimp, print and elbow print 90°

REDEL® 3P Series Plastic Electrical Connectors

The REDEL® 3P Series is LEMO’s first connector series that is constructed entirely of plastic. This series is designed to accommodate cable diameters up to 9.5 mm. They are available in 11 different contact configurations including multi-contact and hybrid HV/electrical and have been specifically designed for all applications requiring minimum weight, maximum electrical insulation values, and high thermal and mechanical properties.

REDEL® 3P Series Characteristics & Benefits

The REDEL® 3P Series features a multitude of benefits to maximize your application’s potential, these include:
  • Indoor/dripping water environments, insert polarizations
  • Lightweight
  • PSU or PEI plastic shell
  • Extensive sterilization (over 100 cycles)
  • Excellent electrical safety (touch & scoop proof)
  • Available in various colors (gray, blue, yellow, black, red, green & white)
  • Large choice of keying to avoid cross mating
  • Aesthetically pleasing design
  • Disposable models available (except 3P series)
  • Various contact types: solder, crimp, print and elbow print 90°

REDEL® 1P, 2P &3P Series Applications

REDEL P Series plastic electrical connectors are regularly used in numerous types of industrial applications, some of which include:
  • Medical electronics
  • Test & Measurements
  • Industrial electronics
  • Automotive

REDEL® SP

The REDEL® SP circular connector series was designed that is uniquely friendly to sterilization processes. In addition, the latching system is embedded in the shell for increased impact resistance, which makes it ideal for medical or measurement applications.

REDEL® SP Features & Benefits

REDEL® SP connectors have a variety of beneficial features and qualities, including:
  • Increased pin density
  • Ease of termination
  • Superior blind mating
  • Increased robust keying
  • Proprietary sulfone plastic shell
  • Extended resistance to sterilization
  • Enhanced ergonomics
  • Increased resistance to shock
  • New patented push-pull system

REDEL® SP Series Applications

The REDEL® SP Series connectors are commonly used in industries that require a sterilization friendly plastic, some of these include:
  • Medical electronics
  • Test & measurement
  • Industrial electronics
