B Series Miscellaneous Push-Pull Connector Plugs & Receptacles

B Series Miscellaneous Push-Pull Connector Plugs & Receptacles
LEMO® B Series Fixed Receptacles feature a keying system which allows for higher contact densities (from 2 – 64 positions) and prevents unwanted cross mating of otherwise similar connectors.

B Series Miscellaneous Plug & Receptacle Options

LEMO® B Series plugs and receptacles are available in numerous miscellaneous variants, including:

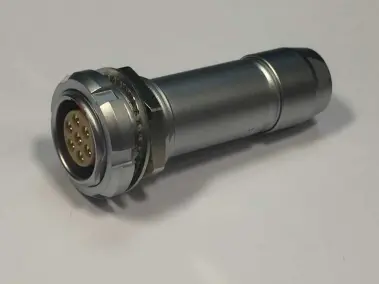

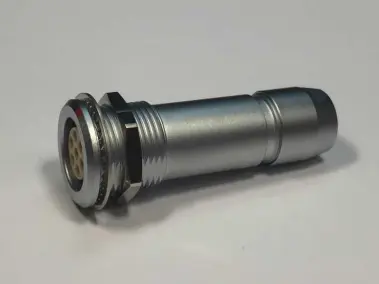

  • Fixed Receptacle
  • Bridge Plug

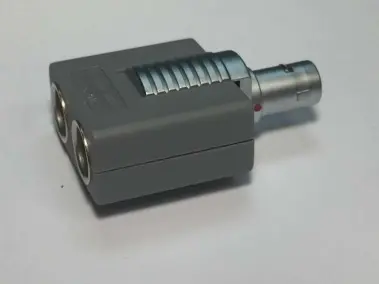

  • Straight Plug
  • Fixed Coupler
  • RJG
LEMO® B Series plugs and receptacles offer a modular, ergonomic, rugged and reliable circular multipole connector for applications needing quick and secure Push-Pull latching.

LEMO® B Series Miscellaneous Plug & Receptacle Applications

LEMO® B Series cable plugs are designed for indoor or vacuum-tight applications, which makes it an ideal choice for a variety of industries, including:

Contact Alpine Electronics Today

Contact us for more information on our LEMO® connector B Series miscellaneous plugs & receptacles, or request a quote today.

The World Famous LEMO self-latching system consists of Swiss engineered and precision machined components. Here is how it works.

LEMO self-latching system

LEMO Cable Mount Plug


The cable mount plug is mated to the receptacle by simply pushing the plug axially into the receptacle housing.  Alignment is accomplished by various keying options.





Once mated the connection cannot be broken by pulling on the cable or any other part of the system beside the outer release sleeve.





A single axial pull of the outer release sleeve results in the latch sleeve retracting and disengagement between plug and receptacle is accomplished.  No twisting or threading allows for closer spacing on a panel because finger clearance is reduced to 180 degrees.




LEMO Part Section Showing Internal Components
