REDEL® 1P Series Connectors

REDEL 1P Series

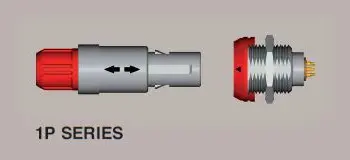

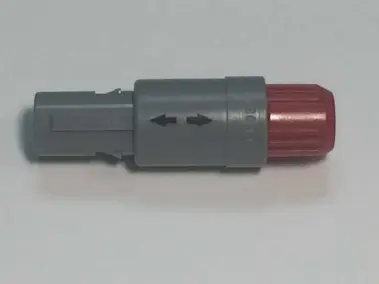

The REDEL® 1P series is a modular plastic circular push-pull connector. The outer shell material is constructed from PSU (PolySUlfone) or PEI (PolyEtherImide) material, while the insert is manufactured from PEEK material. These connectors also feature hard gold-plated brass/bronze for ultimate connectivity. In addition, the REDEL 1P series measures roughly 5/8” in diameter and is IP50 rated dust tight.

The 1P Series is a well proven small sized circular connector that can accommodate cable diameters up to 6.5 mm, and allow up to 14 solder contacts. In addition, the plastic electrical connector contacts of the 1P Series are gold-plated over copper and nickel to ensure at least 1,000 mating / unmating cycles, while maintaining less than 10 mOhm contact resistance.

REDEL® 1P Series Features & Benefits

The REDEL® 1P series provides several notable features and benefits to support your application needs, these include:
  • Push-pull connector self-latching system
  • 6 different keyways
  • IP50 dust tight
  • Compact, lightweight
  • Wide variety of safety features
  • Array of colored nuts for easy identification
  • Medical disposable versions
  • Contact types, solder, crimp, print
Additionally, a keying system combined with color coding can be incorporated on most connector models to assist in the prevention of mismating. Color coding of the plug collet nut and socket flange will give an instant visual indication of connector compatibility.

REDEL® 1P Series Applications

REDEL® 1P circular connectors are used in numerous industries worldwide, some of the more prominent trades include:

  • Medical electronics
  • Test & Measurements
  • Industrial electronics
  • Automotive

Contact Alpine Electronics Today

Alpine Electronics is your premier choice for REDEL® 1P series plastic electrical connectors. Contact us for more information on our REDEL® 1P series push-pull connectors, or request a quote today.
