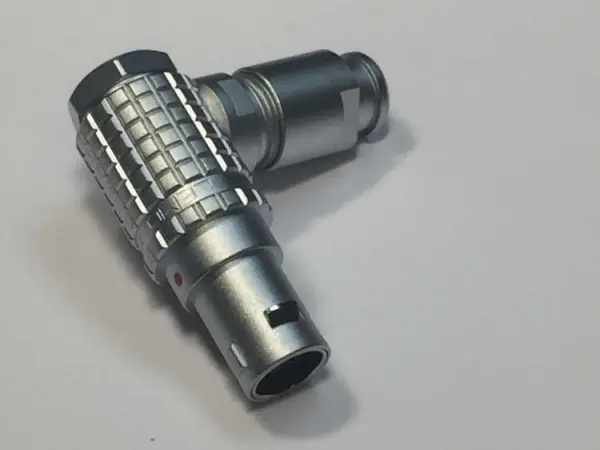

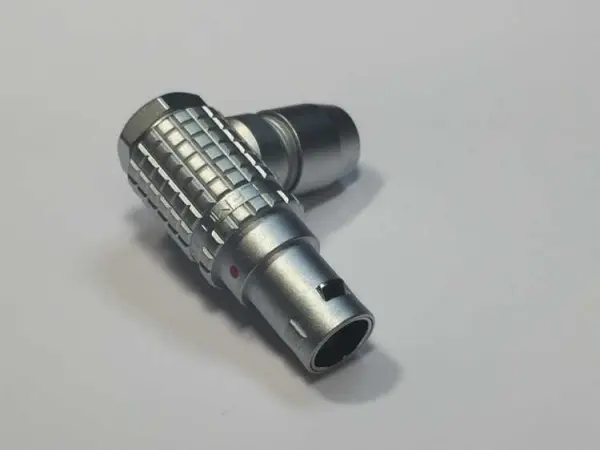

FH - Elbow 90° Plug

  • FH - Elbow 90° Plug

The FH is the elbow version of the B series cable mount plugs. For sizes smaller than shell size 3 it is recommended that the FH version be considered, especially for new designs. The elbow style plug is the ideal choice when the desired cable direction (or exit) from the instrument panel is known. For instance, if your instrument will be typically mounted to a rack or sitting on a bench and the cable is going to drop to the floor, an elbow plug may be a wise choice, as there will be no bending of the cable directly from the back of the plug. This is of special concern when using large diameter heavy cables.

FH Elbow Plug Features

  • Security of the Push-Pull self-latching system IP50
  • Standard G keyway
  • 360 degree shielding for full EMC shielding
  • Solder or Crimp Contacts
  • High packing density for space savings
Please note that availability is dependent upon time of order. If quantity for the product you desire is not available, please call for an alternate LEMO Part number.
