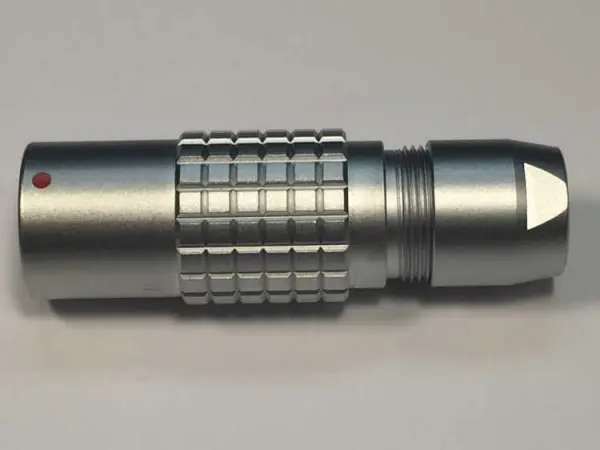

B Series Cable Mount Free Receptacles

B Series Cable Mount Free Receptacles
LEMO’s® B Series cable mount free receptacles feature a keying system (2 to 64 positions) which allows higher contact density and prevents all errors in alignment. The various keying alternatives prevent unwanted cross mating of otherwise similar connectors.

LEMO® B Series Cable Mount Free Receptacle Options

Alpine Electronics’ B Series cable mount free receptacles are available in two unique formats, which include:
  • PH Free Receptacle
  • PE Free Receptacle
The world renowned LEMO® push-pull latching system allows for a quick connect/disconnect while maintaining a full 3600 EMC shielding and the highest security against shock, vibration or pulling on the cable. LEMO® B Series receptacles have long been the choice of savvy equipment designers with mission critical connections.

B Series Cable Mount Free Receptacle Applications

LEMO’s® B Series cable mount free receptacles are used for numerous applications within a wide range of industries, these include:

Contact Alpine Electronics Today

Contact us for more information on our LEMO® connector B Series cable mount free receptacles, or request a quote today.

The World Famous LEMO self-latching system consists of Swiss engineered and precision machined components. Here is how it works.

LEMO self-latching system

LEMO Cable Mount Plug


The cable mount plug is mated to the receptacle by simply pushing the plug axially into the receptacle housing.  Alignment is accomplished by various keying options.





Once mated the connection cannot be broken by pulling on the cable or any other part of the system beside the outer release sleeve.





A single axial pull of the outer release sleeve results in the latch sleeve retracting and disengagement between plug and receptacle is accomplished.  No twisting or threading allows for closer spacing on a panel because finger clearance is reduced to 180 degrees.




LEMO Part Section Showing Internal Components
